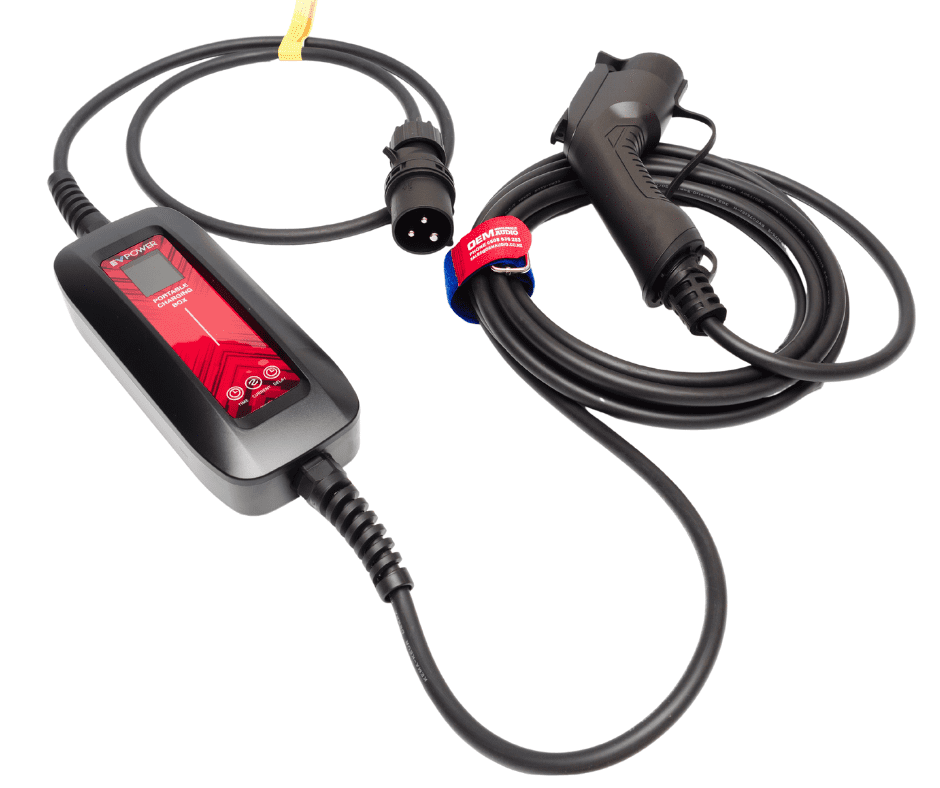

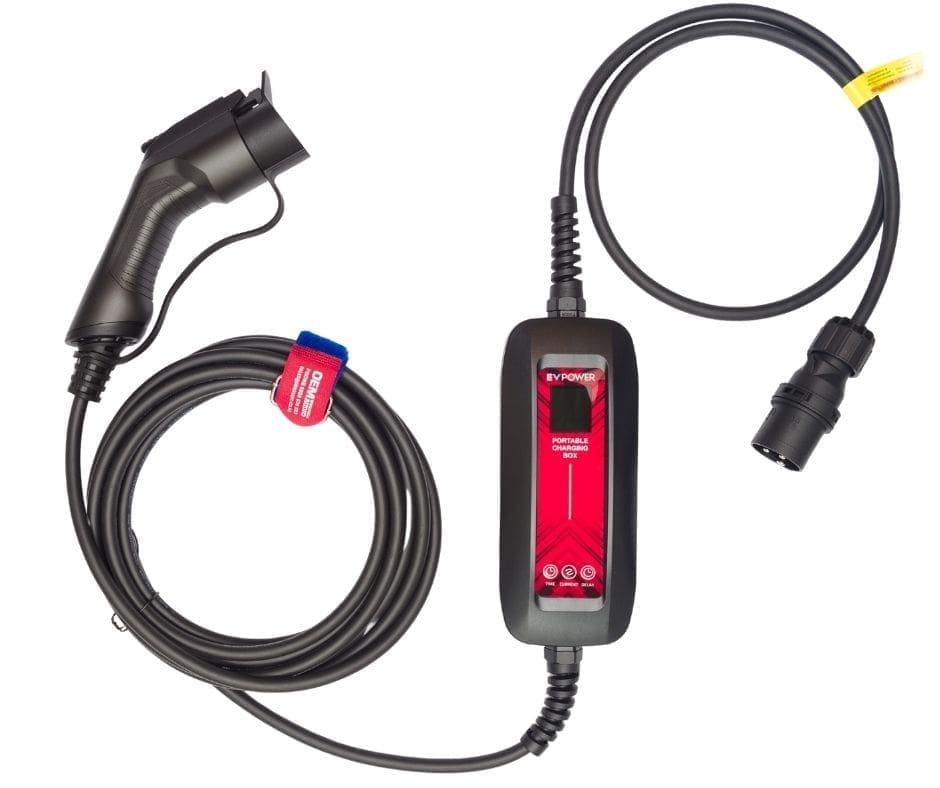

Premium Type 1 Charging Cable, 16 Amp (CEE/caravan plug)

Tough and safe, the EV Power Cable 16 Amp Type 1 Charging Cable has 6ma DC detection built-in, eliminating the need for an RCD Type B with this product. This device with variable 8/10/16 Amp current will detect a fault of more than 6mA of DC current – protection you need against shock and fire hazards during EV charging.

Compatibility

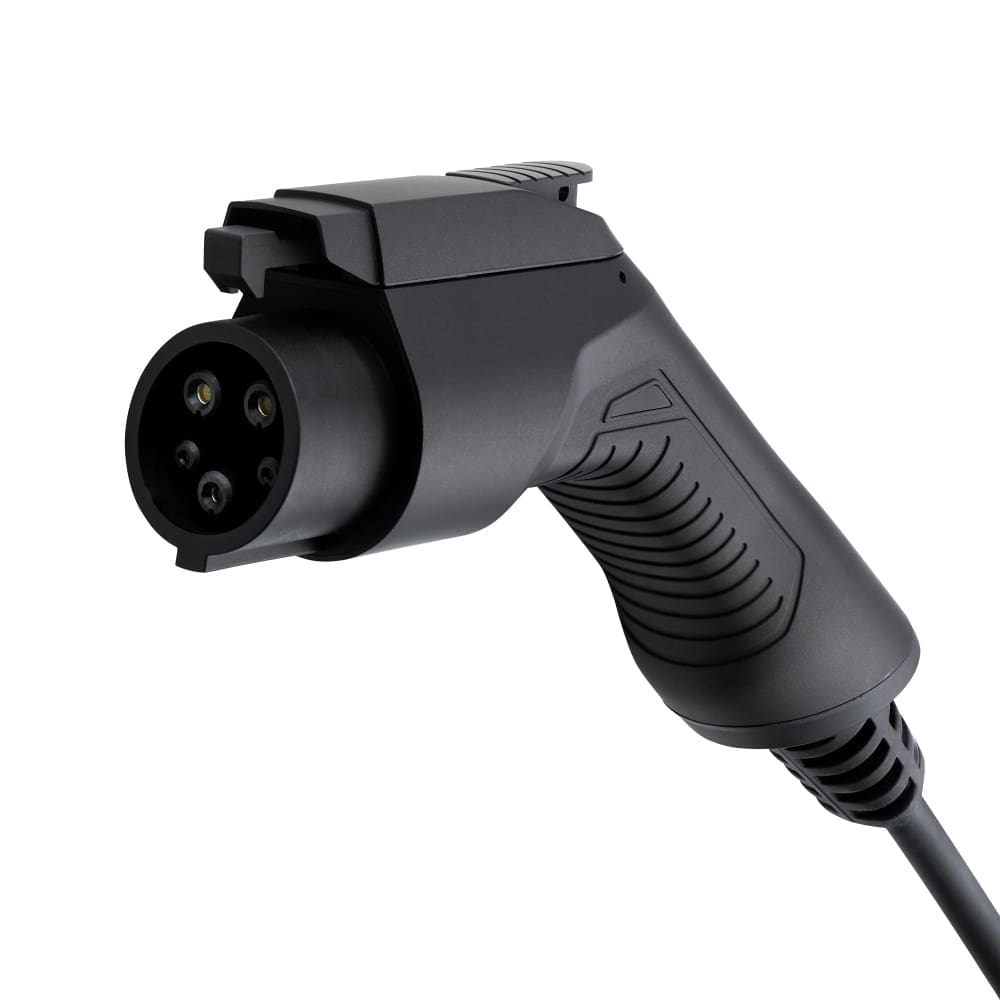

This charging cable is designed to work with all Type 1 Electric Vehicles/PHEVs. Nissan Leaf, Mitsubishi Outlander PHEV, Toyota Prius PHV and nearly all vehicles from Japan. Designed to plug into your 16 Amp CEE wall socket. Consider a wall charger if you are charging your EV daily.

Always make sure you push the plug in firmly to the power supply, otherwise you may cause damage to the product and this is not covered under warranty.

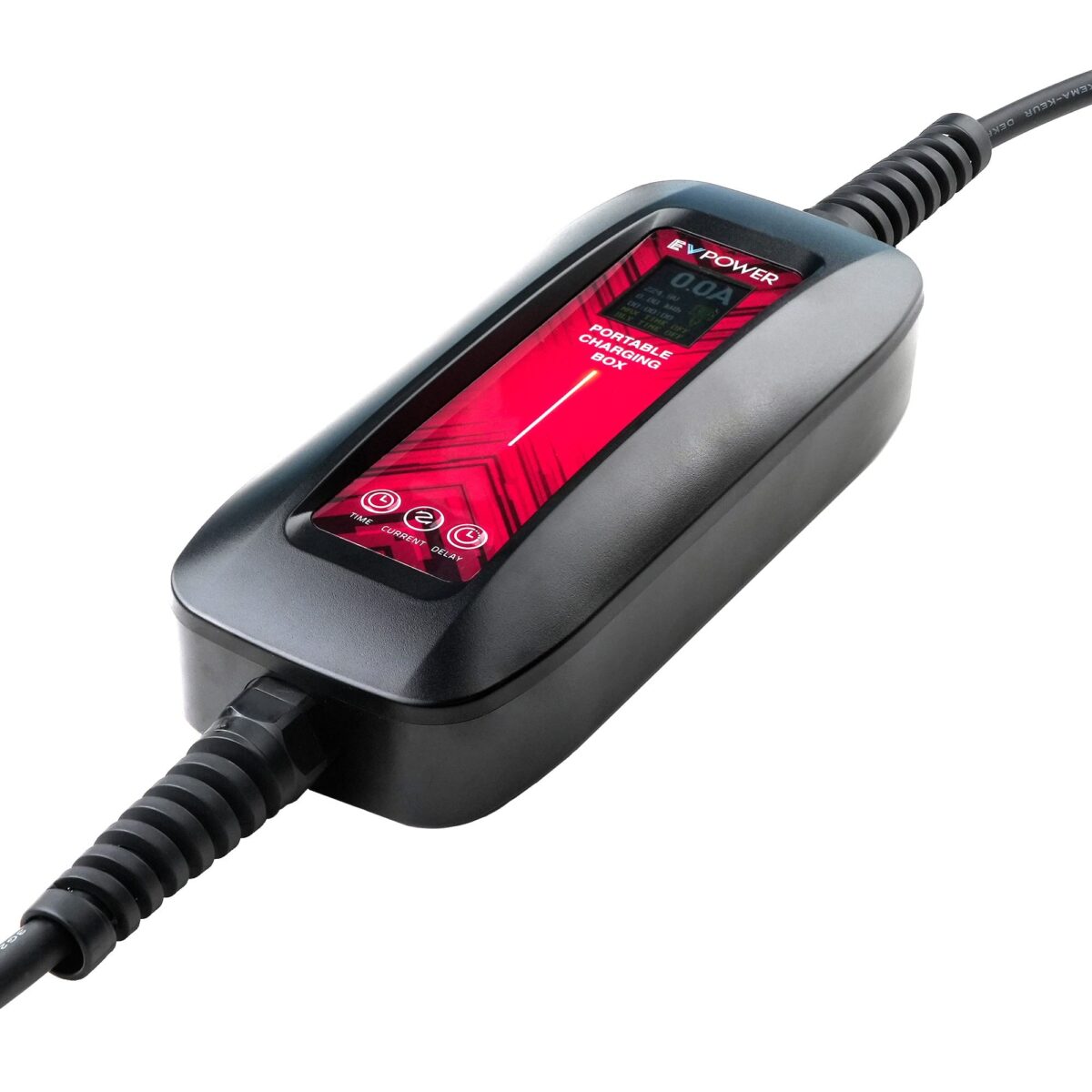

You can delay the start charging time up to 12 hours to take advantage of lower overnight electricity rates. Features full LCD display with charging time display, kW received, voltage rate, Amp rate and kW delivered.

A Supplier Declaration of Conformity (SDoC) – description of the article and a statement that it complies with the required safety standard is available on request

SPECIFICATIONS:
16 Amp switchable to 8 or 10 amp on demand
Easy to read full LCD display
Owners manual
8.20m cable length
Two-year warranty

SAFETY:

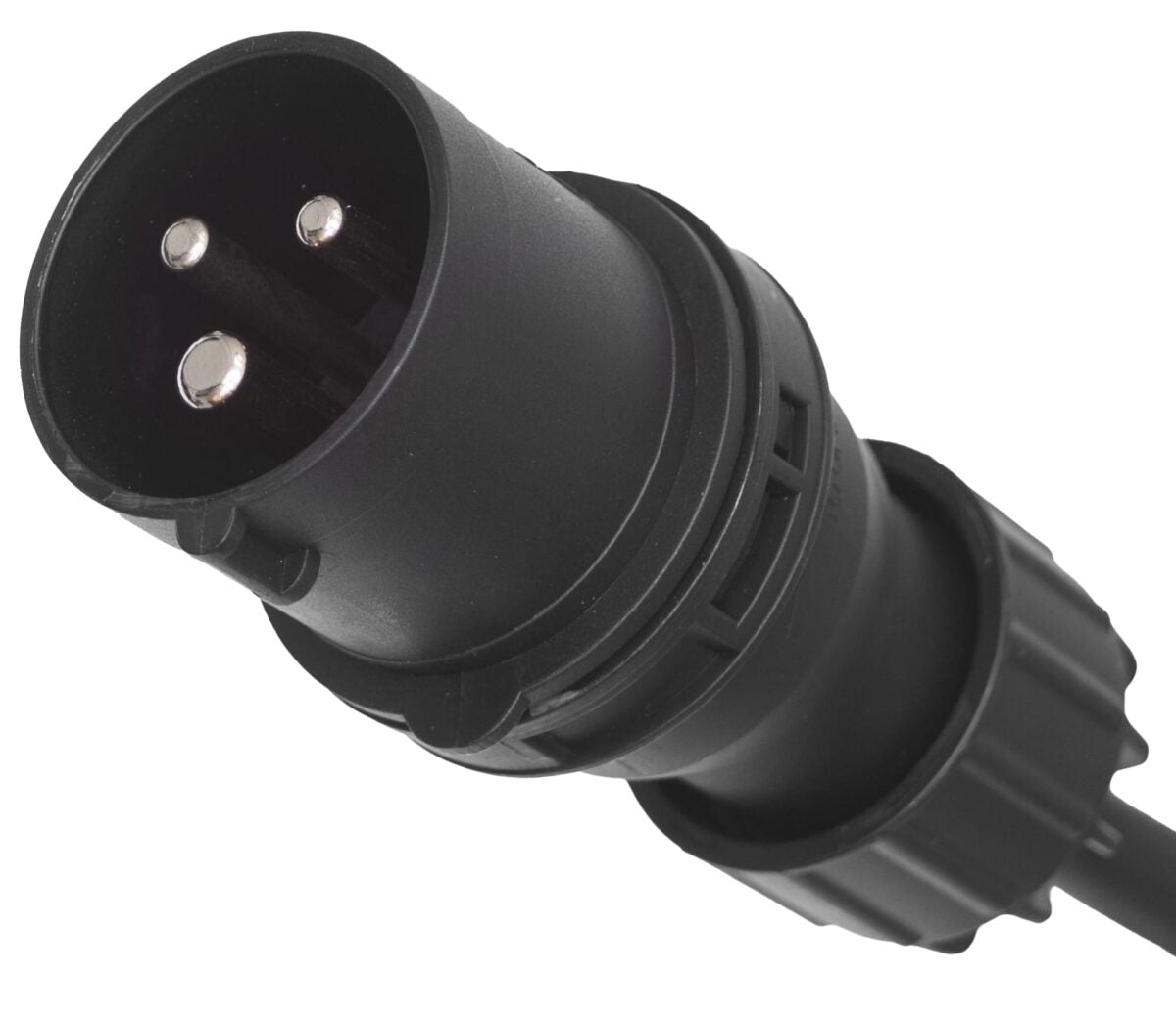

Temperature sensor at CEE plug ‘Caravan’ plug end
ALL components TUV certified and fully compliant with IEC 62752
Earth Leakage protection
Fitted with CE plug and temperature sensor
6 milliamp DC Filter built-in
RCD Type B function.
Auto-reset so if there is a failure at the supply side, the unit will try again after several minutes

DURABLE:
Tough cable – designed for NZ (will withstand a car being driven over it)
IP 65 rated

– Make sure you correctly identify that your vehicle is a Type 1 EV or plug-in hybrid or this lead will not fit. Check out the photo we added of a Nissan Leaf port – check that your vehicle’s port looks the same before ordering.
